Experiment
Title

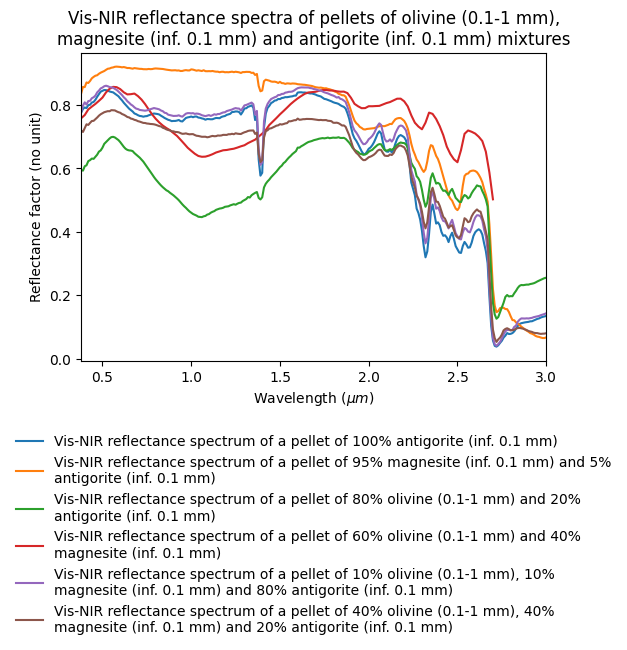

Vis-NIR reflectance spectra of pellets of olivine (0.1-1 mm), magnesite (inf. 0.1 mm) and antigorite (inf. 0.1 mm) mixtures
DOI
10.26302/SSHADE/EXPERIMENT_LM_20221111_0001
Data reference
Mandon, Lucia; Beck, Pierre (2020): Vis-NIR reflectance spectra of pellets of olivine (0.1-1 mm), magnesite (inf. 0.1 mm) and antigorite (inf. 0.1 mm) mixtures. SSHADE/ROMA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LM_20221111_0001
Publications
Type(s)
laboratory measurement
Description
Vis-NIR reflectance spectra (i=0°, e=30°, az=0°) of olivine, magnesite and antigorite mixtures (pellets), in various fractions.
Number of spectra
45
Variable type(s)
  • sample composition
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Sample holder
Flat sample holder in anodized aluminum (not blackened)
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
Vis, NIR
Valid spectral range(s)
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge
#1 0.38 - 0.66 0.02 0.0048
#2 0.68 - 1.48 0.02 0.0095
#3 1.5 - 3.0 0.02 0.019
Comments
Measured over the 360-2700 nm range. Spectra of mixtures with antigorite extend to 3000 nm, with a spectral sampling of 10 nm.
Observation geometry
bidirectional
Observation mode
fixed angles
Incidence angle
0.0°
Emergence angle
30.0°
Azimuth angle
0.0°
Phase angle
30.0°
Resolution illumination
2.9°
Resolution observation
2.05°
Illumination
Observation
Comments
Partial polarization variable with wavelength (from monochromator grating)
Observation mode
single spot
Spatial resolution
5.2 $mm$
Date begin
2020-01-22

Versions

Version (Date)
#1 (2022-11-11 20:46:13 UTC+0000, Updated: 2022-11-11 21:34:50 UTC+0000)
Newer/Last version(s)
