- Title

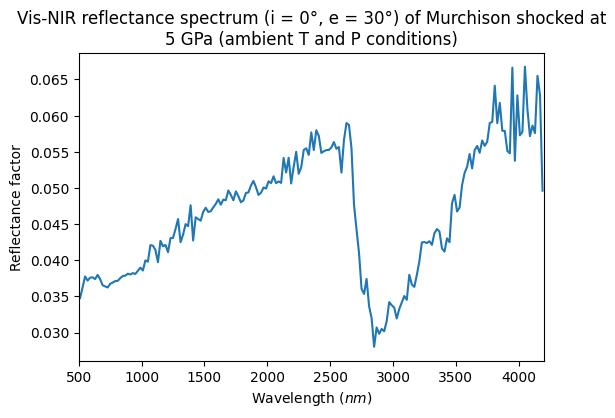

- Vis-NIR reflectance spectrum (i = 0°, e = 30°) of Murchison shocked at 5 GPa (ambient T and P conditions)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2025-03-07 14:21:36 UTC+0000)
- Instrument
- SHINE Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 500.0 - 1000.0 $nm$ ; 1000.0 - 1590.0 $nm$ ; 1600.0 - 2830.0 $nm$ ; 2840.0 - 4200.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Bulk sample of Murchison shocked at 5 GPa
- Texture
- loose granular
- Thickness
- 1.0 $\pm$ 0.15 $mm$
- Temperature
- 297.0 $\pm$ 2.0 $K$
References
- Data reference
- Beck, Pierre; Potin, Sandra (2010): Vis-NIR reflectance spectra (i=0°, e=30°) measured at ambient conditions of pressure and temperature of Murchison (CM2 chondrite) shocked at 5 GPa, 10 GPa, 20 GPa and 40 GPa. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20250307_001
