- Title

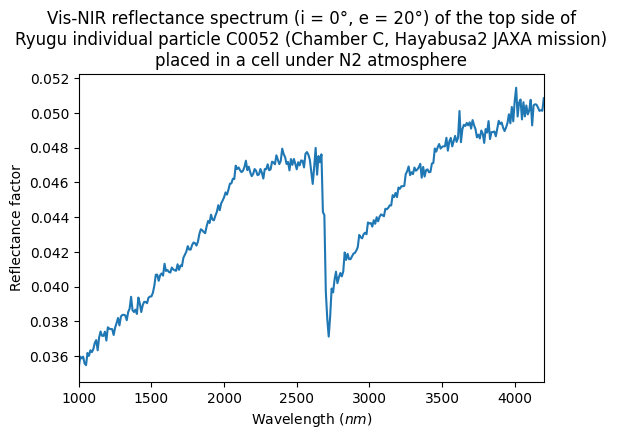

- Vis-NIR reflectance spectrum (i = 0°, e = 20°) of the top side of Ryugu individual particle C0052 (Chamber C, Hayabusa2 JAXA mission) placed in a cell under N2 atmosphere
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2024-11-22 13:39:32+0000 UTC)
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1000.0 - 1580.0 $nm$ ; 1600.0 - 2820.0 $nm$ ; 2840.0 - 4200.0 $nm$
- Observation geometry
- bidirectional : i=0.0° ; e=20.0° ; az=0.0° ; ph=20.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- C0052 pour reflectance
- Texture
- individual grains
- Thickness
- 1202.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Fluid
References
- Data reference
- Beck, Pierre; Poch, Olivier (2022): Vis-NIR reflectance spectra (i = 0°, e = 20°) of Chamber C Ryugu individual raw particles C0050 and C0052 (Hayabusa2 mission, JAXA) placed in a cell under N2 atmosphere. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20241122_001
