Spectrum preview
Title

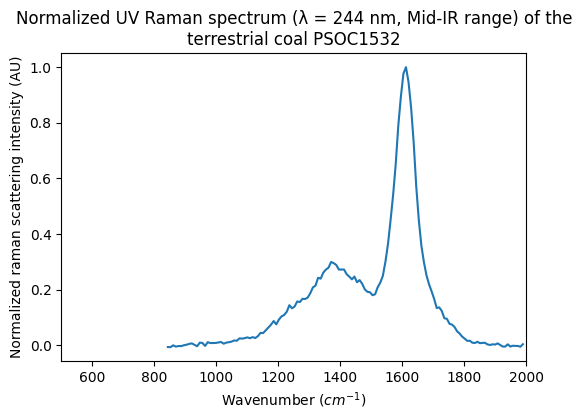

Normalized UV Raman spectrum (λ = 244 nm, Mid-IR range) of the terrestrial coal PSOC1532
Database
Experiment type
laboratory measurement
Spectrum type
normalized Raman scattering intensity
Version
#1 (2020-04-14 17:09:29 UTC+0000)
Instrument parameters
Instrument
labRAM HR800 micro-Raman UV - 244nm
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 4000.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
PSOC1532
Origin
natural terrestrial
Texture
individual grains
Thickness
15.0 $\pm$ 5.0 ${\mu}m$
Temperature
22.0 $\pm$ 2.0 $^{\circ}C$
Irradiated by
  • UV photons
References
Data reference
Quirico, Eric; Montagnac, Gilles (2006): UV Raman spectrum (λ = 244 nm, Mid-IR range) of 15 terrestrial coals and 3 type II kerogens. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200414_001
