Spectrum preview
Title

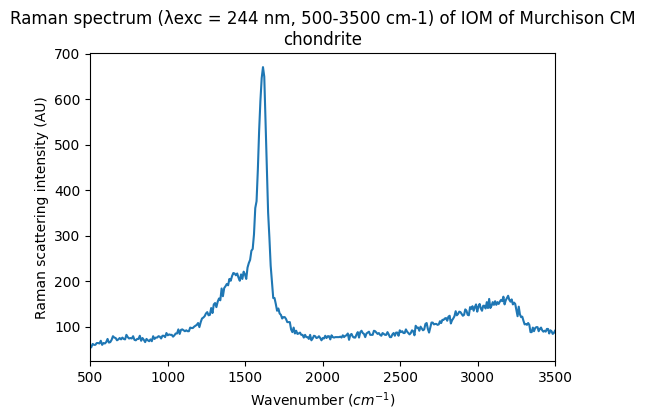

Raman spectrum (λexc = 244 nm, 500-3500 cm-1) of IOM of Murchison CM chondrite
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2020-02-27 09:21:30 UTC+0000)
Instrument parameters
Instrument
labRAM HR800 micro-Raman UV - 244nm
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 4000.0 $cm-1$
Observation geometry
other geometry :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
IOM Murchison (HF/HCl) on glass slide
Origin
extraterrestrial
Texture
individual grains
Thickness
15.0 $\pm$ 5.0 ${\mu}m$
Temperature
22.0 $\pm$ 2.0 $^{\circ}C$
Irradiated by
  • UV photons
References
Data reference
Quirico, Eric; Montagnac, Gilles (2006): UV Raman spectra (λ = 244 nm) of chondritic IOM (CI, CM, CR, ung.). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200226_001
