Experiment NIR spectra of a series of opal (-A and -CT) in ambient conditions and at low temperature (~ -35°C) and/or low pressure (~ 8 mbar)

Sub-Experiment opal-A 86.2: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-A 86.2 in ambient conditions

Spectrum NIR spectrum of opal-A 86.2 under ambient conditions Spectrum NIR spectrum of opal-A 86.2 under ambient conditions

Sub-Experiment NIR spectra of opal-A 86.2 at low temperature

Spectrum NIR spectrum of opal-A 86.2 at low temperature Spectrum NIR spectrum of opal-A 86.2 at low temperature

Sub-Experiment NIR spectra of opal-A 86.2 at low pressure

Spectrum NIR spectrum of opal-A 86.2 at low pressure Spectrum NIR spectrum of opal-A 86.2 at low pressure

Sub-Experiment opal-A 785: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-A 785 in ambient conditions

Spectrum NIR spectrum of opal-A 785 under ambient conditions Spectrum NIR spectrum of opal-A 785 under ambient conditions

Sub-Experiment NIR spectra of opal-A 785 at low temperature

Spectrum NIR spectrum of opal-A 785 at low temperature Spectrum NIR spectrum of opal-A 785 at low temperature

Sub-Experiment NIR spectra of opal-A 785 at low pressure

Spectrum NIR spectrum of opal-A 785 at low pressure Spectrum NIR spectrum of opal-A 785 at low pressure

Sub-Experiment opal-A 1040: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-A 1040 in ambient conditions

Spectrum NIR spectrum of opal-A 1040 under ambient conditions Spectrum NIR spectrum of opal-A 1040 under ambient conditions

Sub-Experiment NIR spectra of opal-A 1040 at low temperature

Spectrum NIR spectrum of opal-A 1040 at low temperature Spectrum NIR spectrum of opal-A 1040 at low temperature

Sub-Experiment NIR spectra of opal-A 1040 at low pressure

Spectrum NIR spectrum of opal-A 1040 at low pressure Spectrum NIR spectrum of opal-A 1040 at low pressure

Sub-Experiment opal-CT 521: Tamb, low T

Sub-Experiment NIR spectra of opal-CT 521 in ambient conditions

Spectrum NIR spectrum of opal-CT 521 under ambient conditions Spectrum NIR spectrum of opal-CT 521 under ambient conditions

Sub-Experiment NIR spectra of opal-CT 521 at low temperature

Spectrum NIR spectrum of opal-CT 521 at low temperature Spectrum NIR spectrum of opal-CT 521 at low temperature

Sub-Experiment opal-CT 1085: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-CT 1085 in ambient conditions

Spectrum NIR spectrum of opal-CT 1085 under ambient conditions Spectrum NIR spectrum of opal-CT 1085 under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1085 at low temperature

Spectrum NIR spectrum of opal-CT 1085 at low temperature Spectrum NIR spectrum of opal-CT 1085 at low temperature

Sub-Experiment NIR spectra of opal-CT 1085 at low pressure

Spectrum NIR spectrum of opal-CT 1085 at low pressure Spectrum NIR spectrum of opal-CT 1085 at low pressure

Sub-Experiment opal-A 1543a: Tamb, low T

Sub-Experiment NIR spectra of opal-CT 1543a in ambient conditions

Spectrum NIR spectrum of opal-CT 1543a under ambient conditions Spectrum NIR spectrum of opal-CT 1543a under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1543a at low temperature

Spectrum NIR spectrum of opal-CT 1543a at low temperature Spectrum NIR spectrum of opal-CT 1543a at low temperature

Sub-Experiment opal-CT 1543b: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-CT 1543b in ambient conditions

Spectrum NIR spectrum of opal-CT 1543b under ambient conditions Spectrum NIR spectrum of opal-CT 1543b under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1543b at low temperature

Spectrum NIR spectrum of opal-CT 1543b at low temperature Spectrum NIR spectrum of opal-CT 1543b at low temperature

Sub-Experiment NIR spectra of opal-CT 1543b at low pressure

Spectrum NIR spectrum of opal-CT 1543b at low pressure Spectrum NIR spectrum of opal-CT 1543b at low pressure

Sub-Experiment opal-CT 1543d: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-CT 1543d in ambient conditions

Spectrum NIR spectrum of opal-CT 1543d under ambient conditions Spectrum NIR spectrum of opal-CT 1543d under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1543d at low temperature

Spectrum NIR spectrum of opal-CT 1543d at low temperature Spectrum NIR spectrum of opal-CT 1543d at low temperature

Sub-Experiment NIR spectra of opal-CT 1543d at low pressure

Spectrum NIR spectrum of opal-CT 1543d at low pressure Spectrum NIR spectrum of opal-CT 1543d at low pressure

Sub-Experiment opal-CT 1548: Tamb, low T

Sub-Experiment NIR spectra of opal-CT 1548 in ambient conditions

Spectrum NIR spectrum of opal-CT 1548 under ambient conditions Spectrum NIR spectrum of opal-CT 1548 under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1548 at low temperature

Spectrum NIR spectrum of opal-CT 1548 at low temperature Spectrum NIR spectrum of opal-CT 1548 at low temperature

Sub-Experiment opal-CT 1551: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-CT 1551 in ambient conditions

Spectrum NIR spectrum of opal-CT 1551 under ambient conditions Spectrum NIR spectrum of opal-CT 1551 under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1551 at low temperature

Spectrum NIR spectrum of opal-CT 1551 at low temperature Spectrum NIR spectrum of opal-CT 1551 at low temperature

Sub-Experiment NIR spectra of opal-CT 1551 at low pressure

Spectrum NIR spectrum of opal-CT 1551 at low pressure Spectrum NIR spectrum of opal-CT 1551 at low pressure

Sub-Experiment opal-CT 1552a: Tamb, low T, low P

Sub-Experiment NIR spectra of opal-CT 1552a in ambient conditions

Spectrum NIR spectrum of opal-CT 1552a under ambient conditions Spectrum NIR spectrum of opal-CT 1552a under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1552a at low temperature

Spectrum NIR spectrum of opal-CT 1552a at low temperature Spectrum NIR spectrum of opal-CT 1552a at low temperature

Sub-Experiment NIR spectra of opal-CT 1552a at low pressure

Spectrum NIR spectrum of opal-CT 1552a at low pressure Spectrum NIR spectrum of opal-CT 1552a at low pressure

Sub-Experiment opal-CT 1552b: Tamb, low T

Sub-Experiment NIR spectra of opal-CT 1552b in ambient conditions

Spectrum NIR spectrum of opal-CT 1552b under ambient conditions Spectrum NIR spectrum of opal-CT 1552b under ambient conditions

Sub-Experiment NIR spectra of opal-CT 1552b at low temperature

Spectrum NIR spectrum of opal-CT 1552b at low temperature Spectrum NIR spectrum of opal-CT 1552b at low temperature

Sub-Experiment opal-A 1039: Tamb, low T

Sub-Experiment NIR spectra of opal-A 1039 in ambient conditions

Spectrum NIR spectrum of opal-A 1039 under ambient conditions Spectrum NIR spectrum of opal-A 1039 under ambient conditions

Sub-Experiment NIR spectra of opal-A 1039 at low pressure

Spectrum NIR spectrum of opal-A 1039 at low pressure Spectrum NIR spectrum of opal-A 1039 at low pressure

Sub-Experiment opal-CT VTB: Tamb, low P

Sub-Experiment NIR spectra of opal-CT VTB in ambient conditions

Spectrum NIR spectrum of opal-CT VTB under ambient conditions Spectrum NIR spectrum of opal-CT VTB under ambient conditions

Sub-Experiment NIR spectra of opal-CT VTB at low pressure

Spectrum NIR spectrum of opal-CT VTB at low pressure Spectrum NIR spectrum of opal-CT VTB at low pressure

Sub-Experiment opal-CT WT86: Tamb, low P

Sub-Experiment NIR spectra of opal-CT WT86 in ambient conditions

Spectrum NIR spectrum of opal-CT WT86 under ambient conditions Spectrum NIR spectrum of opal-CT WT86 under ambient conditions

Sub-Experiment NIR spectra of opal-CT WT86 at low pressure

Spectrum NIR spectrum of opal-CT WT86 at low pressure Spectrum NIR spectrum of opal-CT WT86 at low pressure

Sub-Experiment opal-CT YM12: Tamb, low P

Sub-Experiment NIR spectra of opal-CT YM12 in ambient conditions

Spectrum NIR spectrum of opal-CT YM12 under ambient conditions Spectrum NIR spectrum of opal-CT YM12 under ambient conditions

Sub-Experiment NIR spectra of opal-CT YM12 at low pressure

Spectrum NIR spectrum of opal-CT YM12 at low pressure Spectrum NIR spectrum of opal-CT YM12 at low pressure

Sub-Experiment opal-CT FT1111: Tamb, low T

Sub-Experiment NIR spectra of opal-CT FT1111 in ambient conditions

Spectrum NIR spectrum of opal-CT FT1111 under ambient conditions Spectrum NIR spectrum of opal-CT FT1111 under ambient conditions

Sub-Experiment NIR spectra of opal-CT FT1111 at low pressure

Spectrum NIR spectrum of opal-CT FT1111 at low pressure Spectrum NIR spectrum of opal-CT FT1111 at low pressure

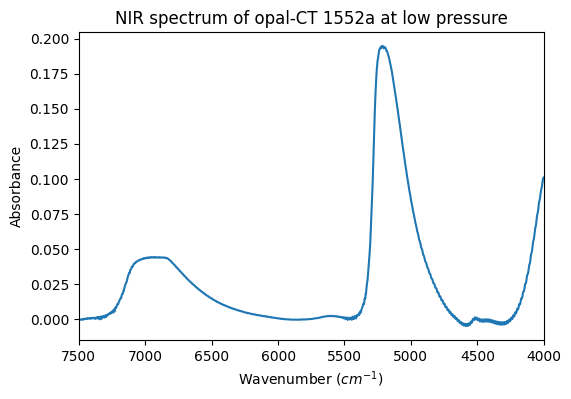

Spectrum preview

Title

NIR spectrum of opal-CT 1552a at low pressure

Database

Experiment type

laboratory measurement

Spectrum type

absorbance

Version

#1 (2020-11-04 17:29:26+0000 UTC)

Instrument parameters

Instrument: Brucker Vertex 70 + Hyperion 3000 – micro-transmission Near-IR
Spectral observation mode: spectrum
Valid spectral range(s): 4000.0 - 9000.0 $cm^{-1}$
Spatial observation mode: single spot

Sample preview

Name: CT-1552a
Origin: natural terrestrial
Texture: compact glassy
Thickness: 224.0 $\pm$ 5.0 ${\mu}m$
Temperature: 20.0 $\pm$ 3.0 $^{\circ}C$
Pressure: 1.0 $\pm$ 0.5 $mbar$

References

Data reference: Chauviré, Boris; Quirico, Eric; Beck, Pierre (2019): NIR spectra of a series of opal (-A and -CT) in ambient conditions and at low temperature (~ -35°C) and/or low pressure (~ 8 mbar). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200201_001
