Spectrum preview
Title

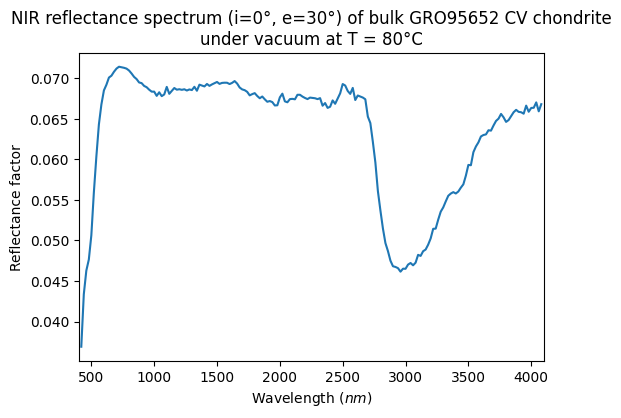

NIR reflectance spectrum (i=0°, e=30°) of bulk GRO95652 CV chondrite under vacuum at T = 80°C
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-01-06 10:34:45 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
380.0 - 660.0 $nm$ ; 680.0 - 1480.0 $nm$ ; 1500.0 - 2980.0 $nm$ ; 3000.0 - 4180.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
powder of bulk GRO95652 CV chondrite
Texture
loose granular
Thickness
1.0 $\pm$ 0.1 $mm$
Temperature
80.0 $\pm$ -272.15 $^{\circ}C$
References
Data reference
Eschrig, Jolantha; Bonal, Lydie; Beck, Pierre (2019): NIR reflectance spectrum (i=0°, e=30°) of bulk CV chondrites under vacuum at T = 80°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20191220_001
