Spectrum preview
Title

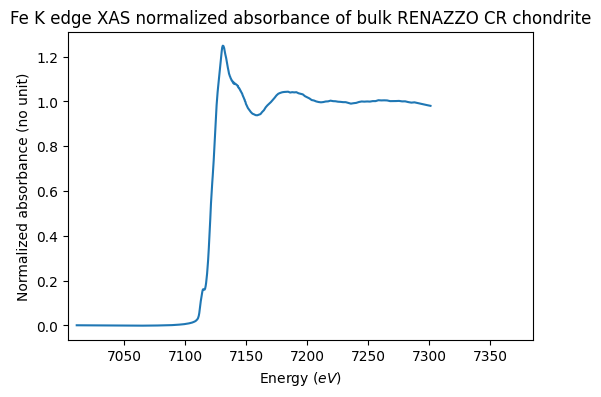

Fe K edge XAS transmission of bulk RENAZZO CR chondrite: normalized spectrum
Database
Experiment type
laboratory measurement
Spectrum type
normalized absorbance
Version
#1 (2019-12-13 12:50:38 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
7004.0 - 7385.0 $eV$
Observation geometry
direct :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pellet of Renazzo CR chondrite mixed with BN
Texture
compact poor grained
Thickness
1.0 $\pm$ 0.5 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $atm$
References
Data reference
Garenne, Alexandre; Bonal, Lydie; Beck, Pierre; Proux, Olivier (2013): Fe K edge XAS transmission of bulk CR carbonaceous chondrites. SSHADE/GhoSST+FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20191211_003
Publications
