- Title

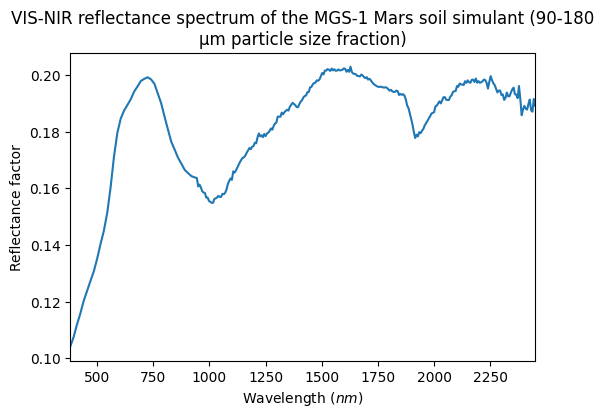

- VIS-NIR reflectance spectrum of the MGS-1 Mars soil simulant (90-180 µm particle size fraction)
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2023-06-14 11:14:49+0000 UTC)
- Instrument
- MoHIS - Hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 390.0 - 935.0 $nm$ ; 944.0 - 1298.0 $nm$ ; 1304.0 - 2396.0 $nm$
- Observation geometry
- biconical : i=5.0° ; e=0.0° ; az=0.0° ; ph=5.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name
- MGS-1 Mars global simulant (90-180 µm size fraction)
- Texture
- loose granular
- Thickness
- 20.0 $\pm$ 2.0 $mm$
- Temperature
- 293.0 $\pm$ 2.0 $K$
References
- Data reference
- Affolter, Lukas (2020): VIS-NIR reflectance spectra of 6 different particles size fractions of the Mars Global Simulant MGS-1 (CLASS Exolith Lab - UCF). SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LA_20201113_000
