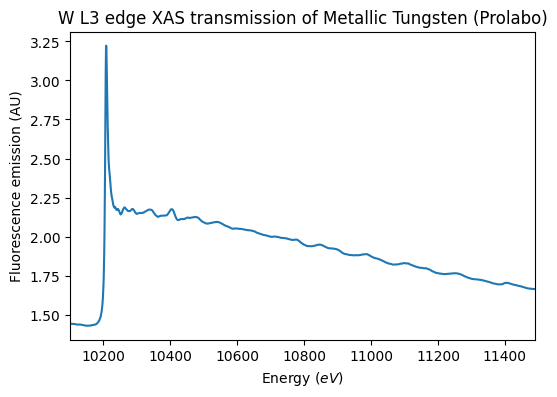

Spectrum preview
Title
W L3 edge XAS transmission of Metallic Tungsten (Prolabo)
Database
Experiment type
laboratory measurement
Spectrum type
fluorescence emission
Version
#1 (2022-09-23 13:03:14 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in fluorescence mode
Spectral observation mode
spectrum
Valid spectral range(s)
10100.0 - 11490.0 $eV$
Observation geometry
directional :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of W_metal mixed with BN
Origin
commercial
Texture
compact poor grained
Thickness
2.0 $\pm$ 0.5 $mm$
Temperature
15.0 $\pm$ 278.15 $K$
Fluid
References
Data reference
Rose, Jérôme; Chaurand, Perrine (2015): W L3 edge XAS transmission of Tungsten oxydation in biological media. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_JR_20150621_001
