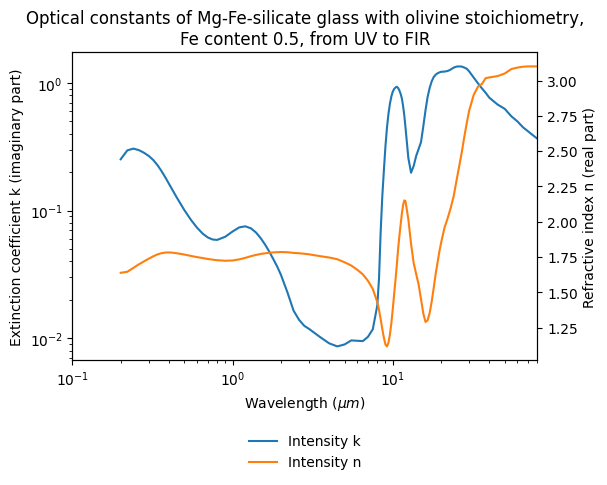

Spectrum preview
Title
Optical constants of Mg-Fe-silicate glass with olivine stoichiometry, Fe content 0.5, from UV to FIR
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2017-10-17 16:22:15 UTC+0000)
Instrument parameters
Instrument
Lambda 19 – transmission UV
Spectral observation mode
spectrum
Valid spectral range(s)
0.19000000000000009 - 0.31900000000000045 ${\mu}m$
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – reflection UV
Spectral observation mode
spectrum
Valid spectral range(s)
0.19000000000000009 - 0.31900000000000045 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – transmission vis
Spectral observation mode
spectrum
Valid spectral range(s)
0.31900000000000045 - 0.859999999999999 ${\mu}m$
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – reflection vis
Spectral observation mode
spectrum
Valid spectral range(s)
0.31900000000000045 - 0.859999999999999 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – transmission NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.859999999999999 - 3.2 ${\mu}m$
Spatial observation mode
single spot
Instrument parameters
Instrument
Lambda 19 – reflection NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.859999999999999 - 3.2 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
2.0 - 25.0 ${\mu}m$
Spatial observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v – reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
2.0 - 25.0 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v – reflection Far-IR
Spectral observation mode
spectrum
Valid spectral range(s)
14.999999999999995 - 80.0 ${\mu}m$
Observation geometry
specular : i=12.0° ; e=12.0° ph=0.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
References
Data reference
Dorschner, Johann; Begemann, Birgit; Henning, Thomas; Jäger, Cornelia; Mutschke, Harald (1994): Optical constants from UV to FIR for 9 glassy Mg and Mg-Fe-silicates. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_HM_20170913_001
