Spectrum preview
Title

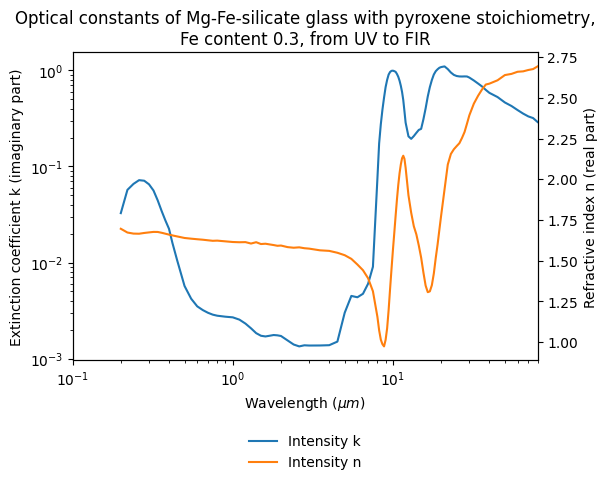

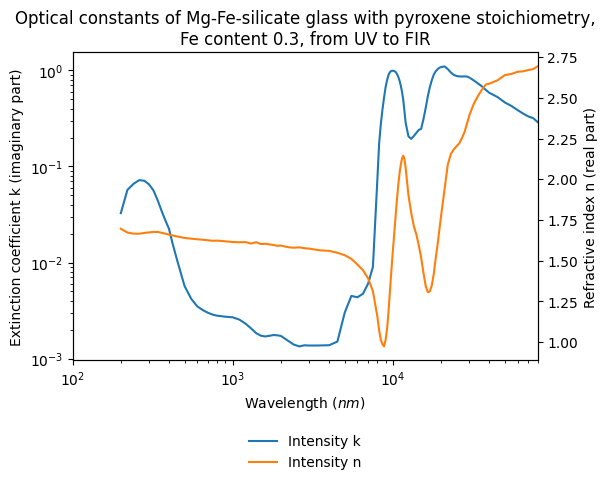

Optical constants of Mg-Fe-silicate glass with pyroxene stoichiometry, Fe content 0.3, from UV to FIR
Database
Spectrum type
optical constants
Version
#1 (2017-10-17 16:31:15)
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
190.0 - 319.0 $nm$
Observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v
Valid spectral range(s)
2.0 - 25.0 ${\mu}m$
Observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v
Valid spectral range(s)
2.0 - 25.0 ${\mu}m$
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
860.0 - 3200.0 $nm$
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
860.0 - 3200.0 $nm$
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
319.0 - 860.0 $nm$
Observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v
Valid spectral range(s)
15.0 - 80.0 ${\mu}m$
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
319.0 - 860.0 $nm$
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
190.0 - 319.0 $nm$
Observation mode
single spot
Sample preview
Name
Generic sample for Mg-Fe-silicate glass with pyroxene stoichiometry, Fe content 0.3, for combined R and T spectroscopy
Origin
laboratory
Texture
compact glassy
Temperature
300.0 $\pm$ 5.0 $K$
Pressure
1000.0 $mbar$
