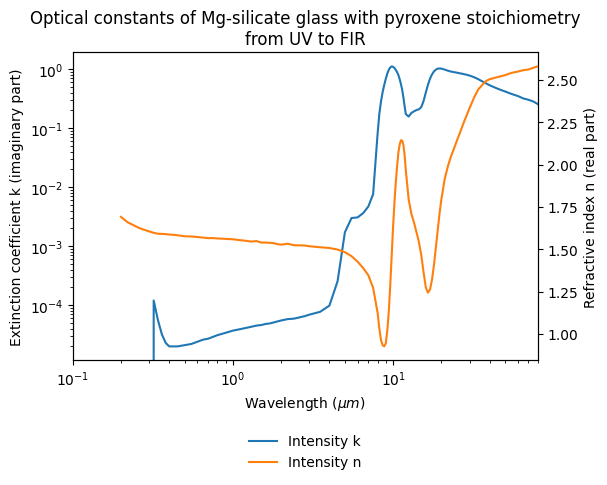

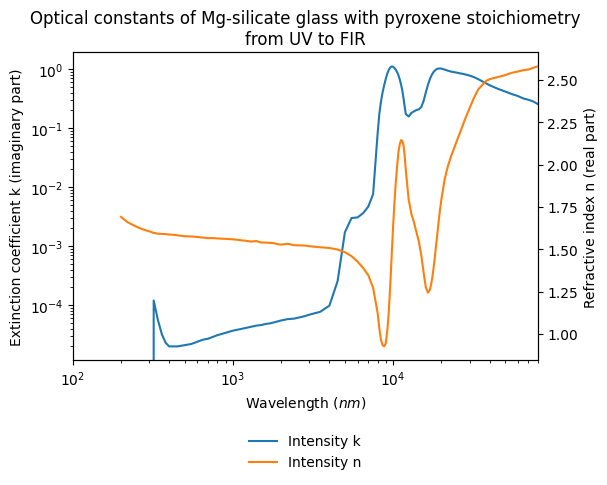

Spectrum preview
Title
Optical constants of Mg-silicate glass with pyroxene stoichiometry from UV to FIR
Database
Spectrum type
optical constants
Version
#1 (2017-10-17 16:31:15)

You can paste the data VOTable URL directly into a VO-compliant software, ie. : (limited support)

-or-

Use SAMP protocol over TLS:

Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :

java -jar tlshub.jar

Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
190.0 - 319.0 nm
Observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v
Valid spectral range(s)
2.0 - 25.0 micron
Observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v
Valid spectral range(s)
2.0 - 25.0 micron
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
860.0 - 3200.0 nm
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
860.0 - 3200.0 nm
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
319.0 - 860.0 nm
Observation mode
single spot
Instrument parameters
Instrument
BRUKER 113v
Valid spectral range(s)
15.0 - 80.0 micron
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
319.0 - 860.0 nm
Observation mode
single spot
Instrument parameters
Instrument
Perkin Elmer Lambda 19
Valid spectral range(s)
190.0 - 319.0 nm
Observation mode
single spot
Sample preview
Name
Generic sample for Mg-silicate glass with pyroxene stoichiometry for combined R and T spectroscopy
Origin
laboratory
Texture
compact glassy
Temperature
300.0 $\pm$ 5.0 $K$
Pressure
1000.0 $mbar$
