Spectrum preview
Title

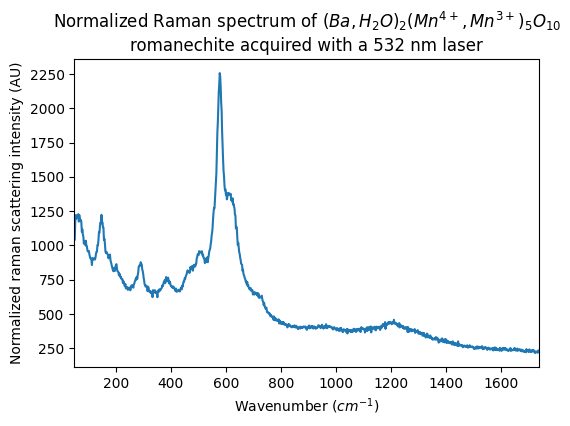

Normalized Raman spectrum of $(Ba,H_2O)_2(Mn^{4+},Mn^{3+})_5O_{10}$ romanechite acquired with a 532 nm laser
Database
Experiment type
laboratory measurement
Spectrum type
normalized Raman scattering intensity
Version
#1 (2019-10-11 15:14:18 UTC+0000)
Instrument parameters
Instrument
Micro-Raman LabRam HR800 - 532 nm
Spectral observation mode
spectrum
Valid spectral range(s)
50.0 - 1740.0 $cm^{-1}$
Observation geometry
directional-conical :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Romanechite
Origin
natural terrestrial
Texture
compact crystal
Temperature
22.0 $\pm$ 1.0 $^{\circ}C$
References
Data reference
Montagnac, Gilles (2000): Raman spectra of some oxide-hydroxide minerals. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GM_20190905_001
