Spectrum preview
Title

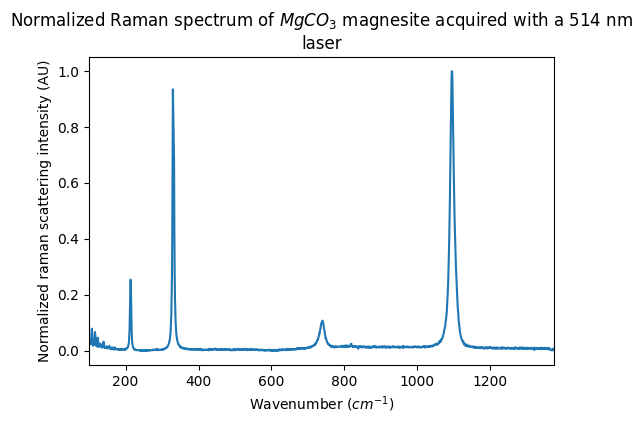

Normalized Raman spectrum of $MgCO_3$ magnesite acquired with a 514 nm laser
Database
Experiment type
laboratory measurement
Spectrum type
normalized Raman scattering intensity
Version
#1 (2019-08-27 13:04:49 UTC+0000)
Instrument parameters
Instrument
DILOR XY micro-Raman - 514 nm
Spectral observation mode
spectrum
Valid spectral range(s)
100.0 - 1375.0 $cm^{-1}$
Observation geometry
directional-conical :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Magnesite
Origin
natural terrestrial
Texture
compact crystal
Temperature
22.0 $\pm$ 1.0 $^{\circ}C$
'
References
Data reference
Montagnac, Gilles (2000): Raman spectra of some carbonate minerals. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data.
