Spectrum preview
Title

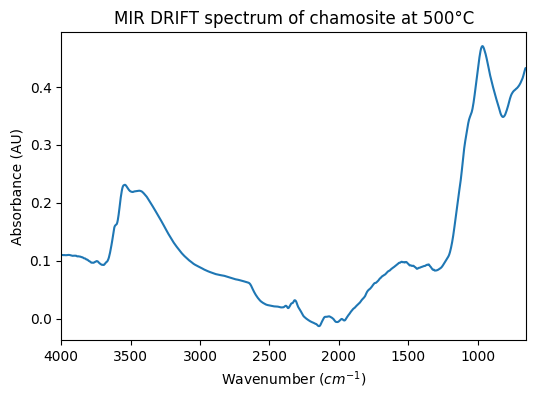

MIR DRIFT spectrum of chamosite at 500°C
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2017-09-08 14:16:45 UTC+0000)
Instrument parameters
Instrument
FTIR-DRIFT-MIR
Spectral observation mode
spectrum
Valid spectral range(s)
650.0 - 4000.0 $cm^{-1}$
Observation geometry
specular : i=45.0° ; e=45.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
SG7 chlorite mixed with diamond powder (15% chlorite) at 25°C
Texture
loose granular
Thickness
0.5 $\pm$ 0.01 $cm$
Temperature
500.0 $\pm$ 10.0 $^{\circ}C$
Fluid
'
References
Data reference
Lempart, Malgorzata; Derkowski, Arkadiusz (2015): MIR DRIFT spectrum of chamosite at 500°C. Version 1. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data.
