Spectrum preview
Title

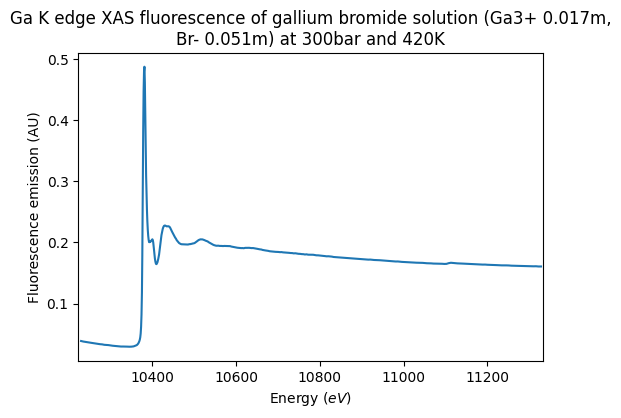

Ga K edge XAS fluorescence of gallium bromide solution (Ga3+ 0.017m, Br- 0.051m) at 300bar and 420K
Database
Spectrum type
fluorescence emission
Version
#1 (2018-07-16 15:58:52)
Instrument parameters
Instrument
BM30B fluorescence
Valid spectral range(s)
10223.0 - 11334.0 $eV$
Observation mode
single spot
Sample preview
Name
Gallium bromide solution in hydrothermal conditions: Ga3+ 0.017m, Br- 0.051m
Origin
laboratory
Texture
liquid
Thickness
4.0 $\pm$ 0.1 $mm$
Temperature
420.0 $\pm$ 0.1 $K$
Pressure
300.0 $\pm$ 0.5 $bar$
Irradiated by
  • None
