Spectrum preview
Title

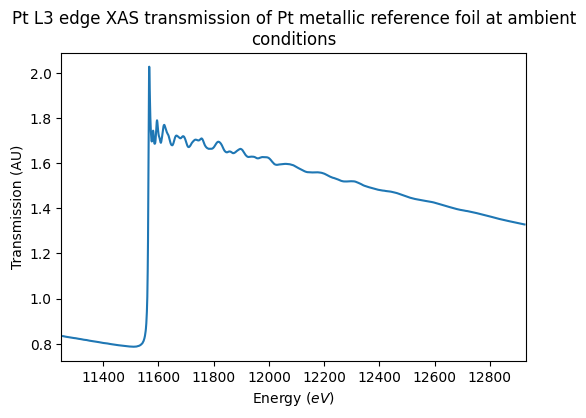

Pt L3 edge XAS transmission of Pt metallic reference foil at ambient conditions
Database
Spectrum type
transmission
Version
#1 (2018-01-17 17:54:47)
Instrument parameters
Instrument
BM30B transmission
Valid spectral range(s)
11249.0 - 12932.0 $eV$
Observation mode
single spot
Sample preview
Name
Pt metallic foil
Origin
commercial
Texture
compact
Thickness
0.001 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $bar$
