Spectrum preview
Title

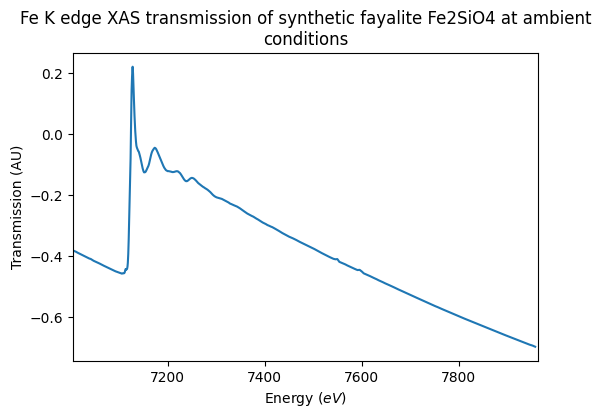

Fe K edge XAS transmission of synthetic fayalite Fe2SiO4 at ambient conditions
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2017-08-23 13:13:50 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
7004.2901584464125 - 7963.25018013937 $eV$
Spatial observation mode
single spot
Sample preview
Name
Pellet of synthetic fayalite Fe2SiO4 mixed with BN
Origin
laboratory
Texture
compact poor grained
Thickness
1.0 $\pm$ 0.5 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
References
Data reference
Testemale, Denis; Sanchez-Valle, Carmen (2016): Fe K edge XAS transmission of synthetic fayalite Fe2SiO4 at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DT_20170706_003
