Spectrum preview
Title

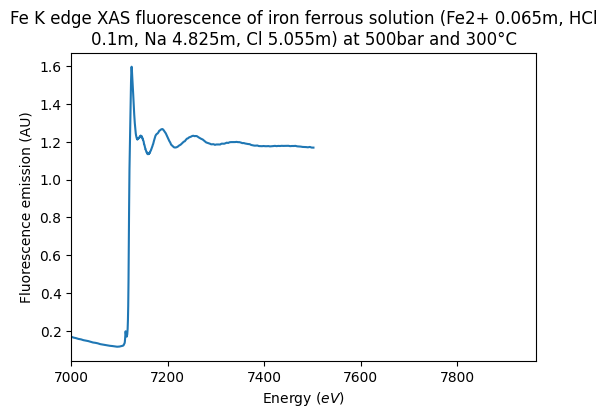

Fe K edge XAS fluorescence of iron ferrous solution (Fe2+ 0.065m, HCl 0.1m, Na 4.825m, Cl 5.055m) at 500bar and 300°C
Database
Experiment type
laboratory measurement
Spectrum type
fluorescence emission
Version
#1 (2017-07-04 15:51:00 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in fluorescence mode
Spectral observation mode
spectrum
Valid spectral range(s)
6999.97 - 7963.42 $eV$
Spatial observation mode
single spot
Sample preview
Name
Iron ferrous solution in hydrothermal conditions: Fe2+ 0.065m, HCl 0.1m, Na 4.825m, Cl 5.055m
Origin
laboratory
Texture
liquid
Thickness
4.0 $\pm$ 0.1 $mm$
Temperature
300.0 $\pm$ 0.1 $^{\circ}C$
Pressure
500.0 $\pm$ 0.5 $bar$
'
References
Data reference
Testemale, Denis (2006): Fe K edge XAS fluorescence of iron ferrous solution (Fe2+ 0.065m, HCl 0.1m, Na 4.825m, Cl 5.055m) at 500bar and 300°C. Version 1. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data.
