Spectrum preview
Title

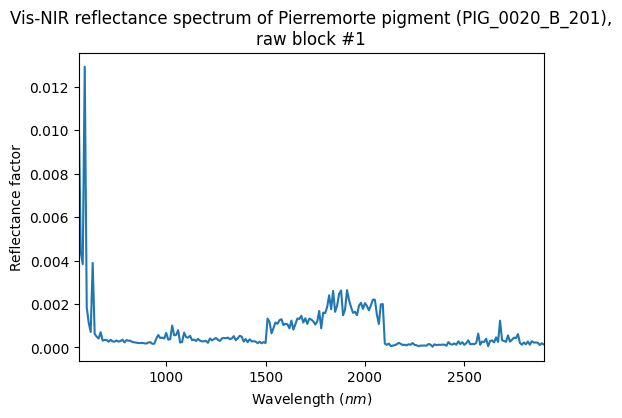

Vis-NIR reflectance spectrum of Pierremorte pigment (PIG_0020_B_201), raw block #1
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-08-20 08:37:02 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
560.0 - 590.0 $nm$ ; 600.0 - 1420.0 $nm$ ; 1430.0 - 2900.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pigment Pierremorte (PIG_0020_B_201), ferruginized limestone, raw block #1
Texture
compact mixed
Thickness
10.0 $\pm$ 3.0 $mm$
Temperature
297.5 $\pm$ 0.5 $K$
References
Data reference
Schmitt, Bernard; Chalmin-Aljanabi, Emilie (2019): Vis-NIR reflectance spectra of Pierremorte pigments (PIG_0020_A and B): blocks, powders, polished plot and painted matters. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200815_100
Publications
