Spectrum preview
Title

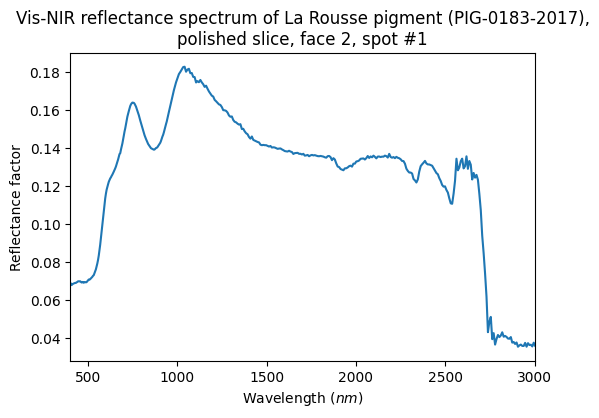

Vis-NIR reflectance spectrum of La Rousse pigment (PIG-0183-2017), polished slice, face 2, spot #1
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-05-31 19:13:10 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
401.9999999999993 - 677.9999999999978 $nm$ ; 681.9999999999984 - 998.0000000000019 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
1001.9999999999999 - 1426.0000000000011 $nm$ ; 1430.0000000000002 - 3001.999999999996 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pigment La Rousse (PIG-0183-2017), red crinoidal limestone - polished slice
Origin
natural terrestrial
Texture
compact fine grained
Thickness
7.0 $\pm$ 0.2 $mm$
Temperature
298.0 $\pm$ 1.0 $K$
References
Data reference
Schmitt, Bernard; Chalmin-Aljanabi, Emilie (2019): Vis-NIR reflectance spectra of La Rousse pigments (PIG-0183-2017): powder, raw block, and polished slice. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200217_100
