Spectrum preview
Title

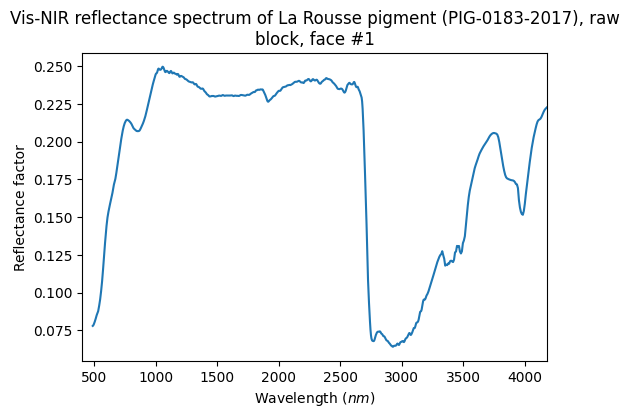

Vis-NIR reflectance spectrum of La Rousse pigment (PIG-0183-2017), raw block, face #1
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-05-31 19:13:10 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
401.9999999999993 - 649.9999999999993 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
654.0000000000016 - 1426.0000000000011 $nm$ ; 1430.0000000000002 - 3198.0000000000014 $nm$ ; 3202.0000000000014 - 4186.0000000000055 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pigment La Rousse (PIG-0183-2017), red crinoidal limestone - raw piece
Texture
compact fine grained
Thickness
20.0 $\pm$ 5.0 $mm$
Temperature
298.0 $\pm$ 1.0 $K$
References
Data reference
Schmitt, Bernard; Chalmin-Aljanabi, Emilie (2019): Vis-NIR reflectance spectra of La Rousse pigments (PIG-0183-2017): powder, raw block, and polished slice. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200217_100
