Spectrum preview
Title

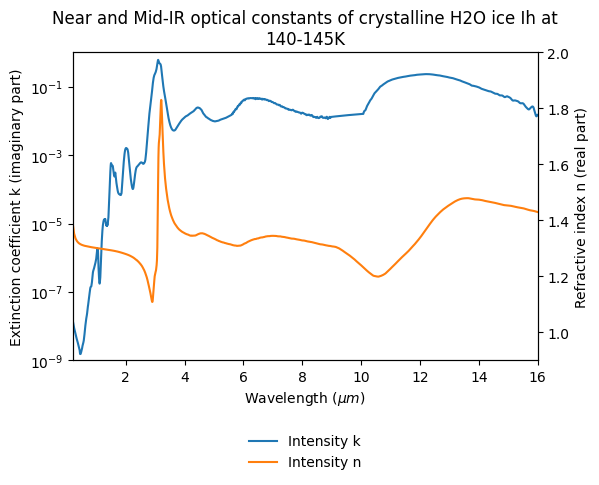

Near and Mid-IR optical constants of crystalline H2O ice Ih at 140-145K
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2020-01-03 14:54:23 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
650.0 - 4000.0 $cm^{-1}$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
Nicolet 800 – transmission Near-IR
Spectral observation mode
spectrum
Valid spectral range(s)
4000.0 - 10500.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
H2O crystalline ice
Origin
laboratory
Texture
compact
Temperature
142.5 $\pm$ 2.5 $K$
Fluid
'
References
Data reference
Schmitt, Bernard (2004): Near and Mid-IR optical constants of crystalline H2O ice Ih at 140-145K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200103_001
