Spectrum preview
Title

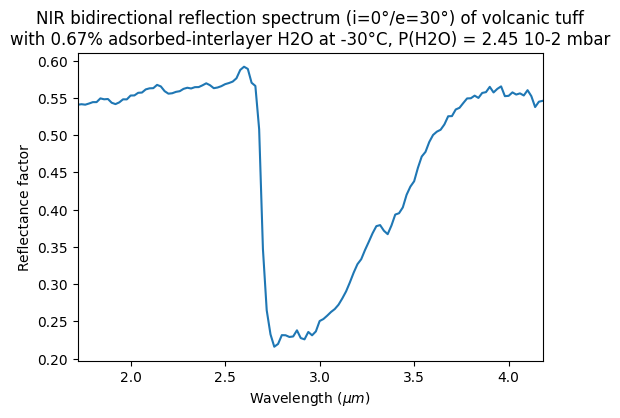

NIR bidirectional reflection spectrum (i=0°/e=30°) of volcanic tuff with 0.67% adsorbed-interlayer H2O at -30°C, P(H2O) = 2.45 10-2 mbar
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2019-12-31 09:12:18 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
1.72 - 2.0 ${\mu}m$ ; 2.0 - 4.18 ${\mu}m$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Volcanic tuff with 0.67% adsorbed H2O
Origin
laboratory
Texture
loose granular
Thickness
1.0 $\pm$ 0.05 $mm$
Temperature
243.1 $\pm$ 0.5 $K$
Fluid
References
Data reference
Pommerol, Antoine; Schmitt, Bernard (2007): Near-IR bidirectional reflection spectra (i=0°/e=30°) of volcanic tuff with different amounts of adsorbed H2O at -30°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20191231_001
