Spectrum preview
Title

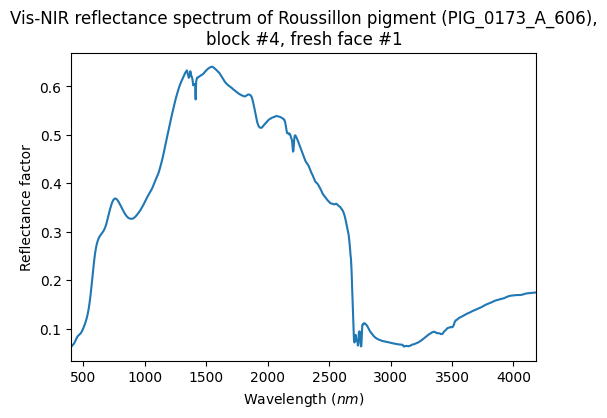

Vis-NIR reflectance spectrum of Roussillon pigment (PIG_0173_A_606), block #4, fresh face #1
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2021-04-05 11:24:45 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
402 - 598 $nm$ ; 602 - 1598 $nm$ ; 1602 - 2834 $nm$ ; 2842 - 4186 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pigment Roussillon (PIG_0176_A_201), Red Ochre - block #4
Texture
compact fine grained
Thickness
30 $\pm$ 10 $mm$
Temperature
293 $\pm$ 5 $K$
References
Data reference
Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Roussillon pigments (PIG_0173_A): raw blocks, powders with different grain sizes and painted matter. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20191012_400
Publications
