Spectrum preview
Title

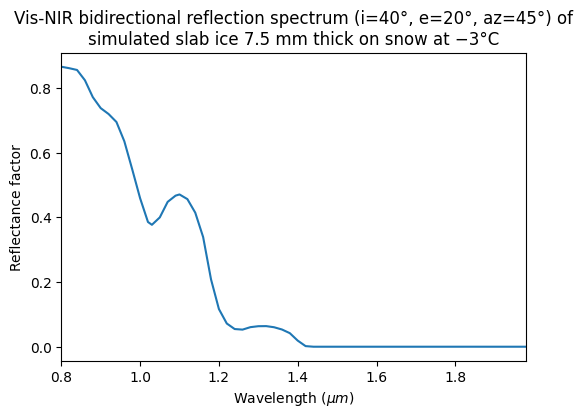

Vis-NIR bidirectional reflection spectrum (i=40°, e=20°, az=45°) of simulated slab ice 7.5 mm thick on snow at −3°C
Database
Experiment type
numerical modeling
Spectrum type
reflectance factor
Version
#1 (2020-03-20 11:02:50 UTC+0000)
Instrument parameters
Instrument
Slab model - bidirectional reflection UV-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.8 - 1.98 ${\mu}m$
Observation geometry
bidirectional : i=40.0° ; e=20.0° ; az=45.0° ; ph=28.9193660041°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
7.5 mm slab ice on snow
Origin
simulated
Texture
compact coarse grained, loose granular
Thickness
inf $mm$
Temperature
270.0 $K$
References
Data reference
Andrieu, François; Douté, Sylvain; Schmidt, Frédéric; Schmitt, Bernard (2015): Vis-NIR bidirectional reflection spectra of simulated slab ice (3 thicknesses: 2.2, 7.5 and 11.4 mm) on snow at −3°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20160912_001
