Spectrum preview
Title

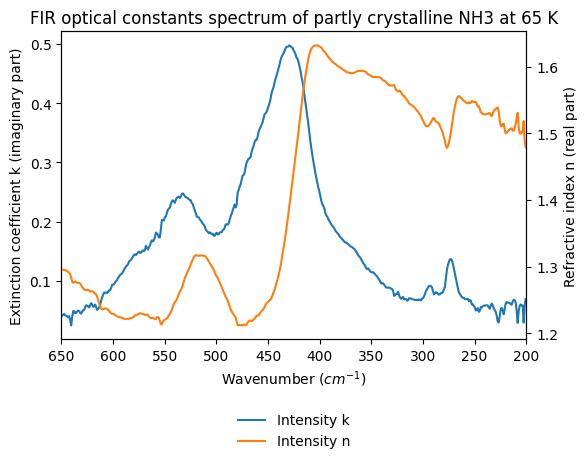

FIR optical constants spectrum of partly crystalline NH3 at 65 K
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2017-11-17 17:16:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Far-IR
Spectral observation mode
spectrum
Valid spectral range(s)
200.0 - 650.0 $cm^{-1}$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=2.21237390821°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
NH3 partly crystalline - dep 35K
Origin
laboratory
Texture
compact poor grained
Temperature
65.0 $\pm$ 1.0 $K$
Fluid
References
Data reference
Trotta, Frederic; Schmitt, Bernard (1991): FIR optical constants of partly crystalline NH3 at 65 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
