Spectrum preview
Title

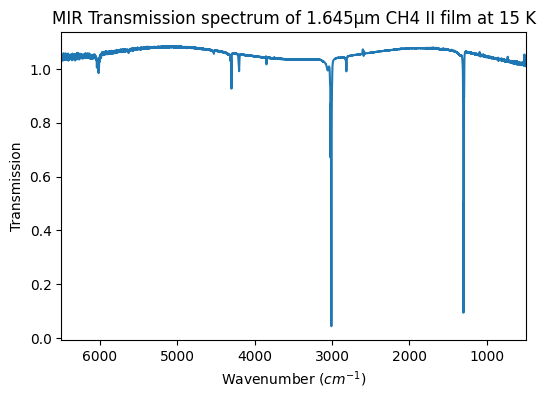

MIR Transmission spectrum of 1.645µm CH4 II film at 15 K
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2017-11-17 17:16:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
490.0 - 6500.0 $cm^{-1}$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=2.21237390821°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
CH4 crystalline II - film 1.645µm
Origin
laboratory
Texture
compact poor grained
Thickness
1.645 $\pm$ 0.025 ${\mu}m$
Temperature
15.0 $\pm$ 0.5 $K$
References
Data reference
Trotta, Frederic; Schmitt, Bernard (1995): MIR Transmission spectrum of 1.645µm CH4 II film at 15 K. Version 1. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
