- Title

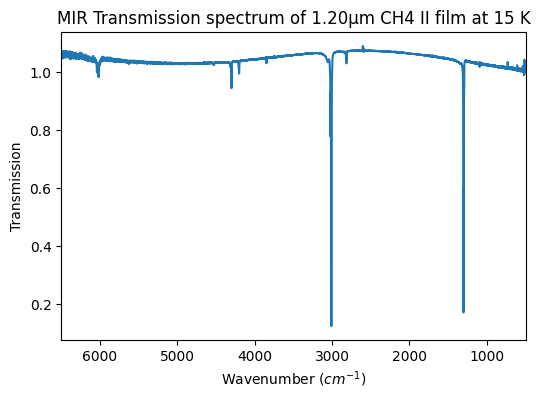

- MIR Transmission spectrum of 1.20µm CH4 II film at 15 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2017-11-17 17:16:56 UTC+0000)
- Instrument
- Nicolet 800 – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 490.0 - 6500.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- CH4 crystalline II - film 1.20µm
- Origin
- laboratory
- Texture
- compact poor grained
- Thickness
- 1.2 $\pm$ 0.02 ${\mu}m$
- Temperature
- 15.0 $\pm$ 0.5 $K$
References
- Data reference
- Trotta, Frederic; Schmitt, Bernard (1995): MIR Transmission spectra at 15 K of solid CH4-II films with increasing thickness (0.275-1.95µm). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
