Spectrum preview
Title

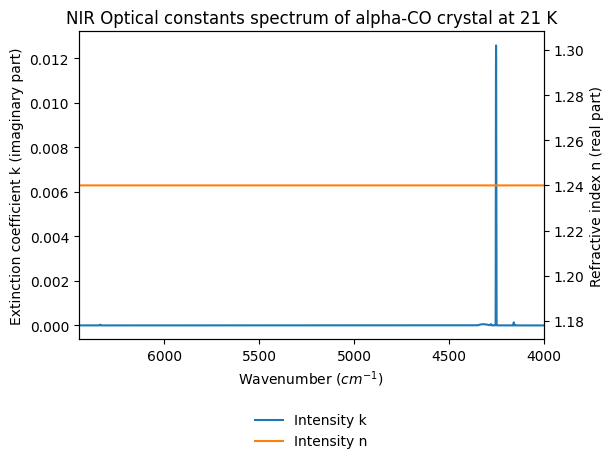

NIR Optical constants spectrum of alpha-CO crystal at 21 K
Database
Spectrum type
optical constants
Version
#1 (2017-11-17 17:25:56)

You can paste the data VOTable URL directly into a VO-compliant software, ie. : (limited support)

-or-

Use SAMP protocol over TLS:

Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :

java -jar tlshub.jar

Instrument parameters
Instrument
Nicolet 800
Valid spectral range(s)
4000.0 - 4500.0 cm-1 ; 6150.0 - 6450.0 cm-1
Observation mode
single spot
Sample preview
Name
alpha-CO crystalline
Origin
laboratory
Texture
compact poor grained
Temperature
21.0 $\pm$ 0.5 $K$
Irradiated by
  • None
