Spectrum preview
Title

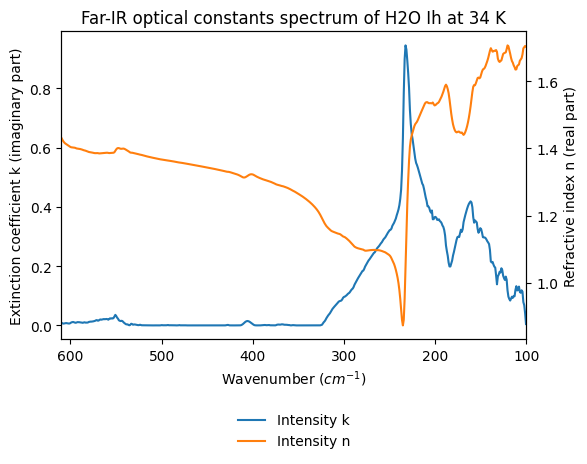

Far-IR optical constants spectrum of H2O Ih at 34 K
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2017-11-17 17:16:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Far-IR
Spectral observation mode
spectrum
Valid spectral range(s)
100.0 - 610.0 $cm-1$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
thin film H2O crystalline Ih ice
Origin
laboratory
Texture
compact fine grained
Temperature
34.0 $\pm$ 1.0 $K$
References
Data reference
Schmitt, Bernard; Trotta, Frederic (1995): Far-IR optical constants of crystalline H2O Ih at different temperatures between 34K and 133K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130120_002
