Spectrum preview
Title

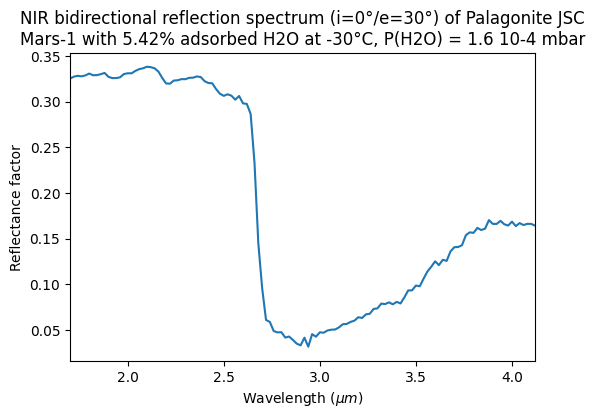

NIR bidirectional reflection spectrum (i=0°/e=30°/az=0°) of Palagonite JSC Mars-1 with 5.42% adsorbed H2O at -30°C, P(H2O)= 1.6 10-4 mbar
Database
Spectrum type
bidirectional reflectance factor
Version
#1 (2018-10-23 02:24:26)
Instrument parameters
Instrument
SHINE Spectro-Gonio Radiometer
Valid spectral range(s)
1.7 - 2.0 ${\mu}m$ ; 2.0 - 4.12 ${\mu}m$
Observation mode
single spot
Sample preview
Name
Palagonite JSC Mars-1 with 5.42% adsorbed H2O
Origin
natural terrestrial
Texture
earthy
Thickness
1.0 $\pm$ 0.1 $mm$
Temperature
243.1 $\pm$ 1.0 $K$
Pressure
0.0 $mbar$
Fluid
