NIR bidirectional reflection spectra (i=0-70°/e=0-70°/az=180°) of Smectite STx-1 2µm grains at 263K, Patm | GhoSST

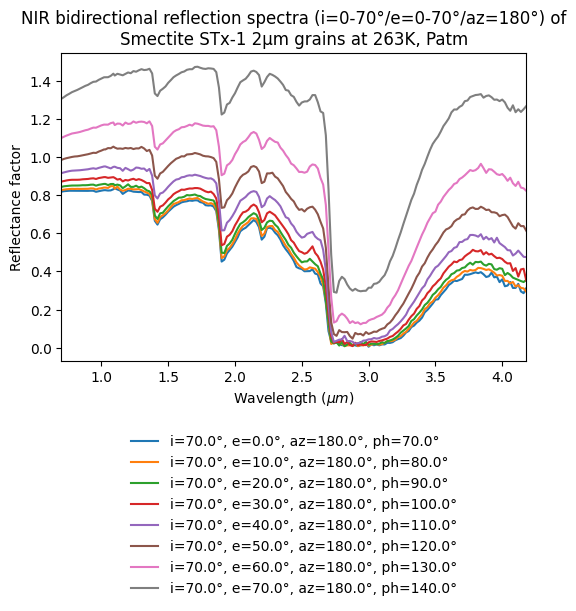

Spectrum preview

Title

NIR bidirectional reflection spectra (i=0-70°/e=0-70°/az=180°) of Smectite STx-1 2µm grains at 263K, Patm

Database

GhoSST

Experiment type

laboratory measurement

Spectrum type

reflectance factor

Version

#1 (2017-07-04 10:13:32+0000 UTC)

Instrument parameters

Instrument: SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode: spectrum
Valid spectral range(s): 0.7 - 1.0 ${\mu}m$ ; 1.0 - 2.0 ${\mu}m$ ; 2.0 - 4.18 ${\mu}m$
Observation geometry: bidirectional :
Angle observation mode: two variable angles
Spatial observation mode: single spot

Sample preview

Name

Montmorillonite STx-1 - 2 µm grains

Origin

natural terrestrial

Texture

earthy

Thickness

3.0

\pm

$\pm$ 0.2

m m

$mm$

Temperature

263.0

\pm

$\pm$ 1.0

K

$K$

Fluid

References

Data reference: Pommerol, Antoine; Schmitt, Bernard (2007): NIR bidirectional reflection spectra (i=0-70°/e=0-70°/az=180°) of Smectite STx-1 (2 µm grains) at 263K, Patm. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20121217_001
