Spectrum preview
Title

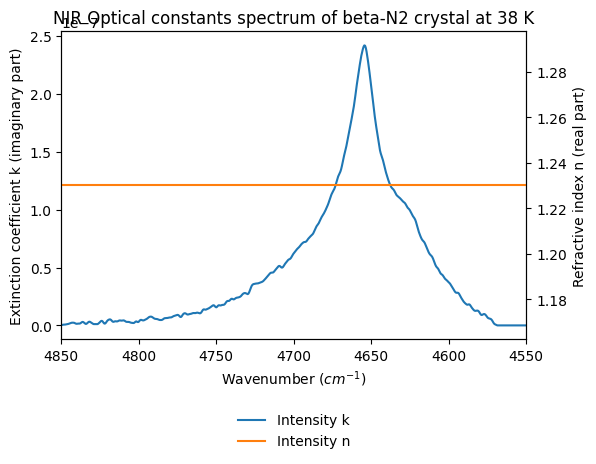

NIR Optical constants spectrum of beta-N2 crystal at 38 K
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2017-11-17 17:16:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Near-IR
Spectral observation mode
spectrum
Valid spectral range(s)
4550.0 - 4850.0 $cm^{-1}$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
beta-N2 crystalline
Origin
laboratory
Texture
compact coarse grained
Thickness
10.0 $\pm$ 0.1 $mm$
Temperature
38.0 $\pm$ 0.1 $K$
Fluid
  • $N_2$ , 100.0 $\pm$ 0.00019999999999999998%
References
Data reference
Quirico, Eric; Schmitt, Bernard; Grundy, Will (1992): Near-IR Optical constants spectra of alpha and beta N2 ices at different temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20120925_001
Publications
