Spectrum preview
Title

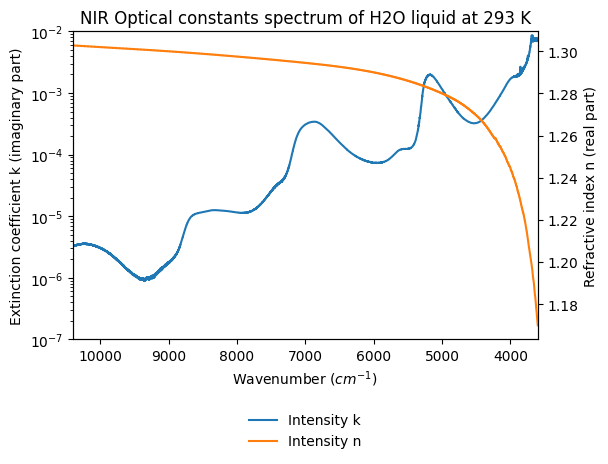

NIR Optical constants spectrum of H2O liquid at 293 K
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2017-07-04 10:52:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Near-IR
Spectral observation mode
spectrum
Valid spectral range(s)
3600.0 - 10500.0 $cm^{-1}$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=2.21237390821°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
H2O liquid
Origin
laboratory
Texture
liquid
Temperature
293.0 $\pm$ 0.5 $K$
References
Data reference
Grundy, Will; Schmitt, Bernard (1998): NIR Optical constants spectrum of H2O liquid at 293 K. Version 1. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
