Spectrum preview
Title

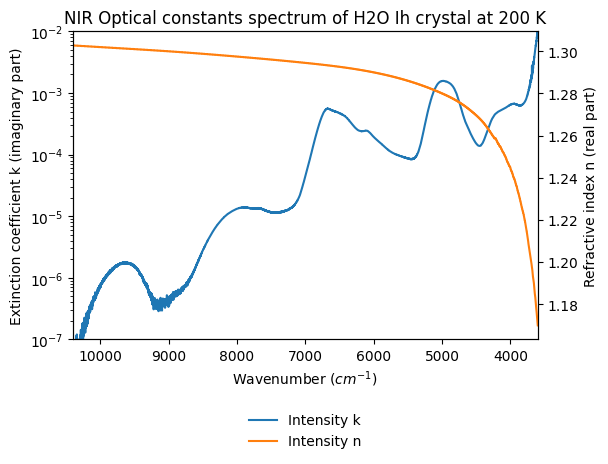

NIR Optical constants spectrum of H2O Ih crystal at 200 K
Database
Spectrum type
optical constants
Version
#1 (2018-05-01 14:20:31)
Instrument parameters
Instrument
Nicolet 800
Valid spectral range(s)
3600.0 - 10500.0 $cm^{-1}$
Observation mode
single spot
Sample preview
Name
H2O crystalline ice
Origin
laboratory
Texture
compact coarse grained
Temperature
200.0 $\pm$ 0.1 $K$
Pressure
0.006 $\pm$ 0.001 $bar$
