Spectrum preview
Title

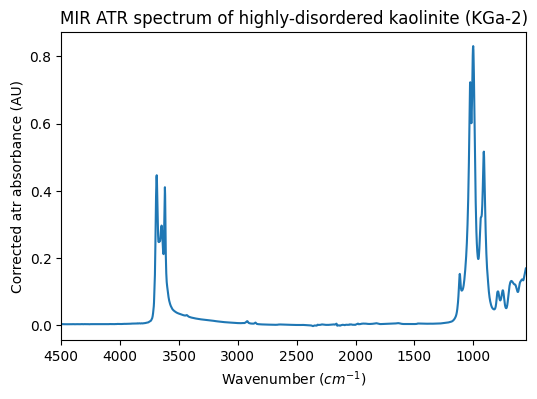

MIR ATR spectrum of highly-disordered kaolinite (KGa-2)
Database
Experiment type
laboratory measurement
Spectrum type
corrected ATR absorbance
Version
#1 (2017-09-08 16:02:59 UTC+0000)
Instrument parameters
Instrument
FTIR-ATR-MIR
Spectral observation mode
spectrum
Valid spectral range(s)
550.0 - 4500.0 $cm^{-1}$
Observation geometry
specular : i=45.0° ; e=45.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Kaolinite (KGa-2), poorly ordered
Origin
natural terrestrial
Texture
earthy
Thickness
0.2 $\pm$ 0.1 $cm$
Temperature
25.0 $\pm$ 3.0 $^{\circ}C$
References
Data reference
Kuligiewicz, Artur; Derkowski, Arkadiusz (2014): Mid-infrared attenuated total reflectance experiment with kaolinite (KGa-2). SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data.
