- Title

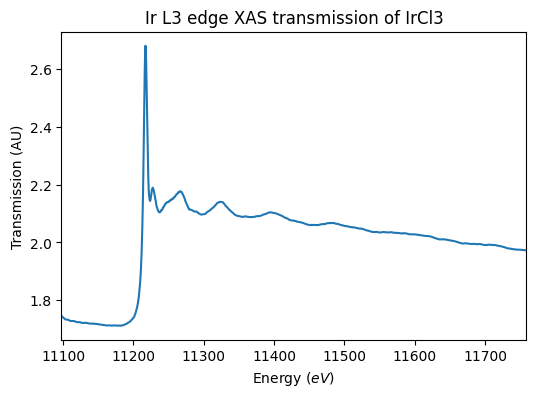

- Ir L3 edge XAS transmission of IrCl3
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2025-02-14 12:43:30+0000 UTC)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 11097.6 - 11758.6 eV
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Pellet of IrCl3 mixed with BN
- Origin
- commercial
- Texture
- compact poor grained
- Thickness
- 2.0 ± 0.5 mm
- Temperature
- 300.0 K
- Pressure
- 1.0 bar
References
- Data reference
- Aguilar Tapia, Antonio (2018): Ir L3 edge XAS transmission and XAS fluorescence of Ir compounds. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_AA_20180509_001
